PerRoad:  Axle Types

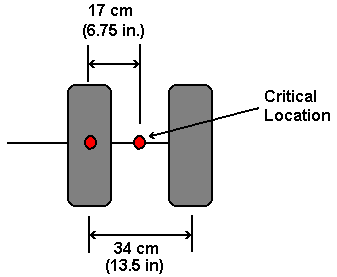

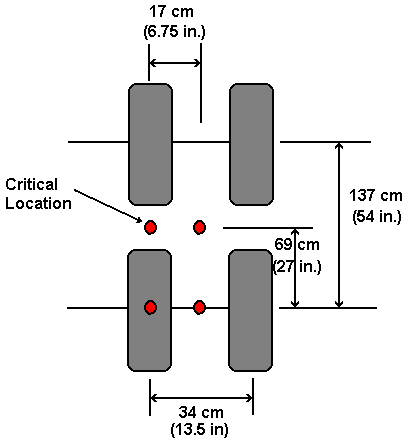

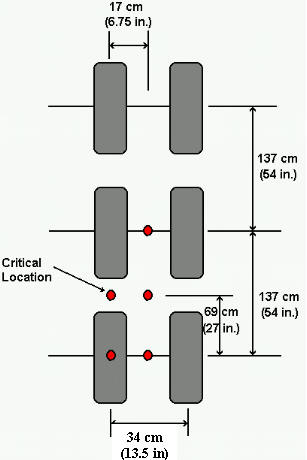

There are four default axle configurations as shown in the figures below.  Note that only half the axle is shown since it is standard practice when modeling axles on asphalt pavements to only consider the right-hand-side of the vehicle due to the narrow stress distribution beneath the loading configuration.
